Vanity Note
- Each vanity on our plans is accompanied by a note specifying the vanity size of the base cabinet in inches. This note indicates the exact length of the vanity cabinet to ensure the proper size is installed in each bathroom, and that all other bathroom fixtures are positioned in compliance with applicable codes.
Where is this note located?

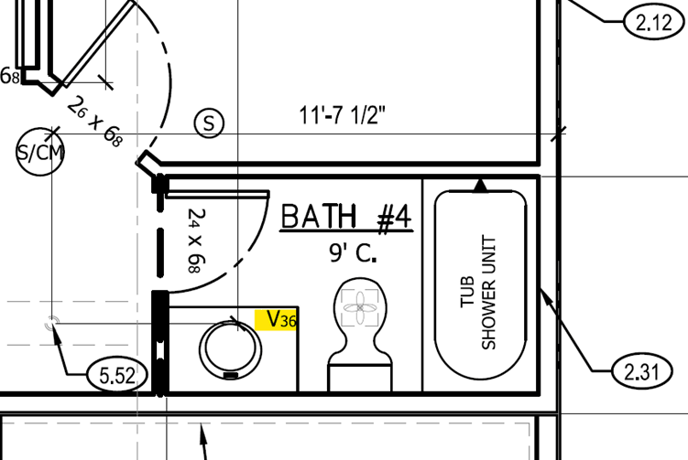

- This note can be found on the edge or corner of each vanity in the plan. For instance, the bathroom below features a vanity with a note reading "V36," indicating that the vanity cabinet is 36 inches wide, or 3 feet.
Why is this important?
- Ensuring the correct vanity size is ordered for each bathroom is crucial for proper installation. It guarantees that the other plumbing fixtures will fit appropriately and comply with code requirements for the necessary spacing. Additional information regarding the standard bathroom code requirements can be found on the following page.
-
Bathroom Code Requirements 101

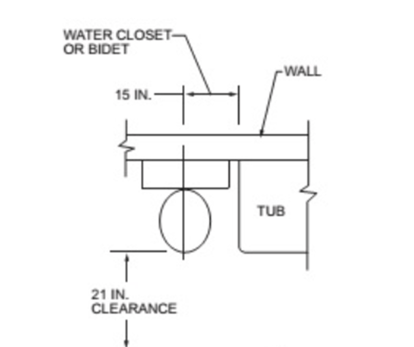

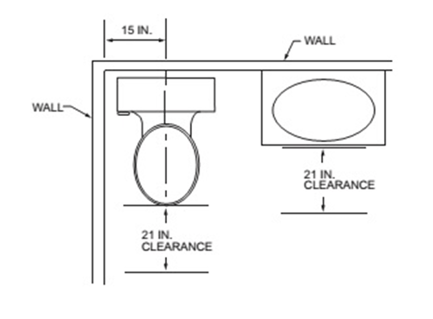

- According to IRC 2018, A toilet shall not be set closer than 15 inches from its center to any side wall, partition or vanity or closer than 30 inches center-to-center between adjacent fixtures. There shall be a clearance of no less than 21 inches in front of a toilet to any wall, fixture or door. Refer to the visual representations below for more context.
- According to IRC 2018, A toilet shall not be set closer than 15 inches from its center to any side wall, partition or vanity or closer than 30 inches center-to-center between adjacent fixtures. There shall be a clearance of no less than 21 inches in front of a toilet to any wall, fixture or door. Refer to the visual representations below for more context.
